CisFun Technology Corp.

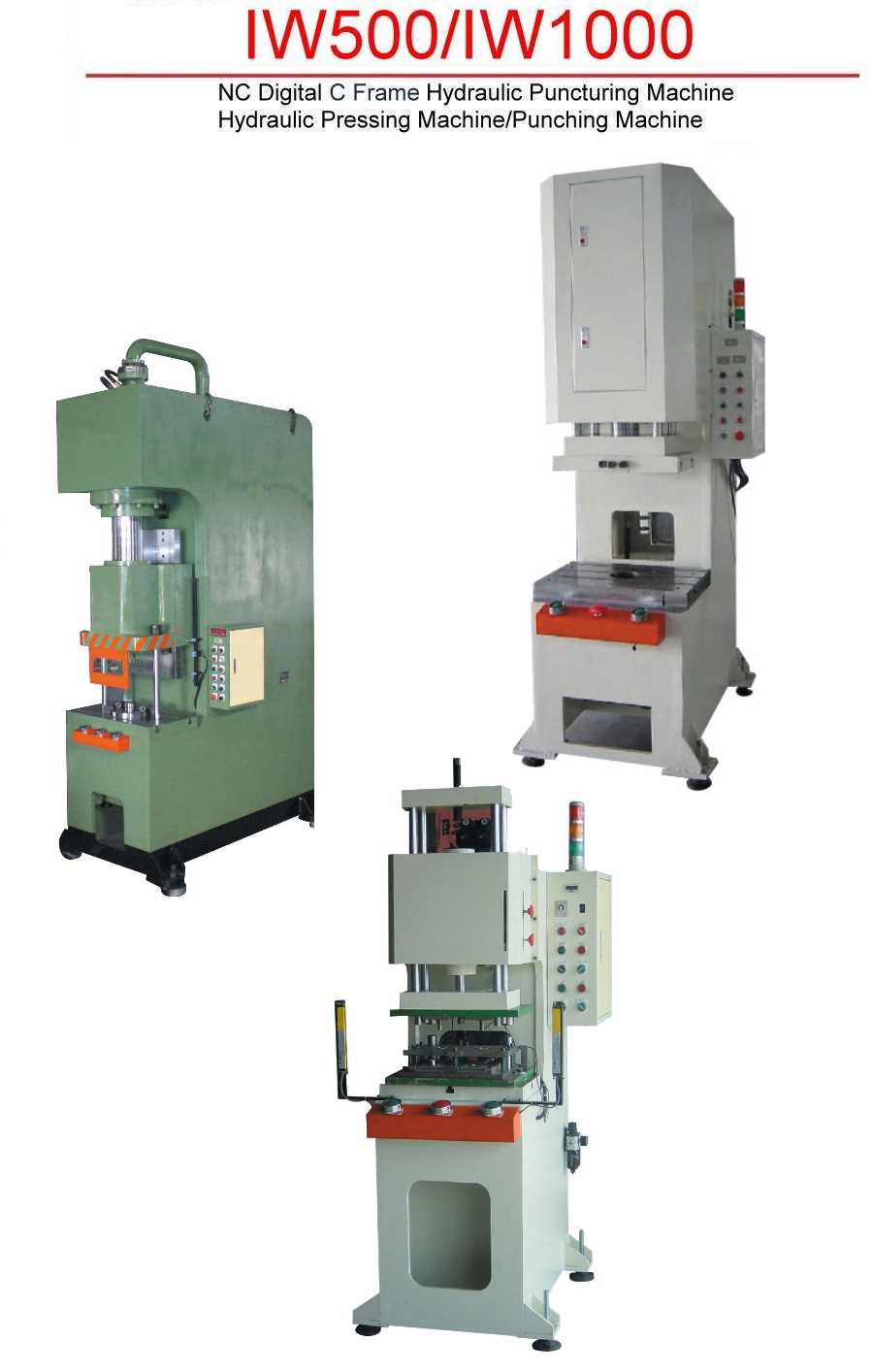

Hydraulic Punching Press

Type

Punching Pressure (Ton)

Total Working Table Size (W*D)

Moving Punching Table Size [It can move by HAND WHEEL] (W*D)

Table Height to Ground

IW500

50 Ton

650*500m/m

500*400m/m

750mm

IW1000

100 Ton

900*600m/m

700*500m/m

900mm



Type

Working Height Up to Die (Z Axis Travel)

Max. Stroke Length

Throat Depth

Speed (mm/sec)

Ejector Equipment (OPTIONAL)

Electric Power

Up

Down

Punching

Ton

Stroke Length

IW500

500mm

120 m/m

300mm

120

100

15

3

60mm

7.5HP

IW1000

650mm

400 m/m

400mm

120

70

10

9

80mm

15HP

¡@

Features

¡¹    TFT human machine interface display ,touching controllable screen setting, digital control systems, servo motor positioning dimension precision, attached with modular memory functions.

¡¹    Structure: The body frame is designed with the composite assembly with robust and endurable spare parts.

¡¹    Operation Function: Jogging/automatic Functions

¡¹    Oil Hydraulic System :step-less operation adjustment ,hydraulic loops designed with zero load ,combined with extremely low frequency oil pump motor ,effectively reduced noise , increased motor efficiency and service duration

¡¹    The oil hydraulic cylinder of this machine is featured rapid movement of oil hydraulic cylinder . Whenever the oil hydraulic cylinder is moving downward ,the machine is designed with featured like low RPM, high speed moving downward ,low speed processing ,and high speed position resume so that it is available to increase the formation stability of work pieces during puncturing

¡¹     The electrical control system is designed with human machine interface with throat depth of 700mm The distance adjustment is designed with scaling positions ,start distance marks ,low speed position marks, and low extremity position .The mold set is available for forward and backward 150mm moving accessibility .Our machine is designed with the Italy ¡Vmade digital scale (LCD Display) with high precision and convenient operation.

¡¹    Application: The material feed-in ,puncturing, embossing ,deep drawing and cutting for finished products.

¡@
